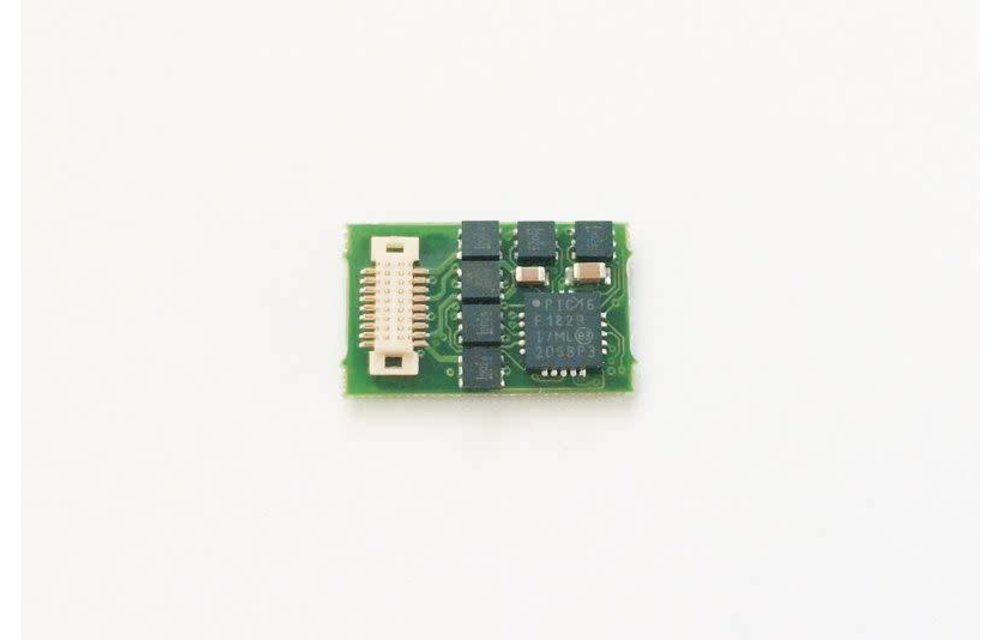

Kuehn N45 is currently the most widely used decoder by N-track users. Its very good features and no less than 6 functions make it a versatile decoder for every user.
Suitable for:
Data format: Motorola / DCC
Voltage type: DC (max. 24V)
Suitable for analog operation: Yes
Suitable for motor type: DC; Faulhaber
Maximum current per output: 200 mA
Maximum motor current: 0.8 A.
Light - depending on the direction of travel: Yes
Light output - dimmable: Yes
Special function outputs: 4
Function Mapping: Yes
SUSI interface: Yes
LISSY output: No.
Characteristics:
Addresses Märklin / DCC: 1-254 / 1-127 / 1-10239 (long addresses)
Rice steps Motorola / DCC: 14 / 14,28,128
PWM frequency: 16khz, 32khz or 120 hz (for older engines)
Cruise Control: Yes
Programmable driving steps: Yes for 28 driving steps
Shunting range: F4
Acceleration and braking delay: Yes
Protected against short circuit: Yes

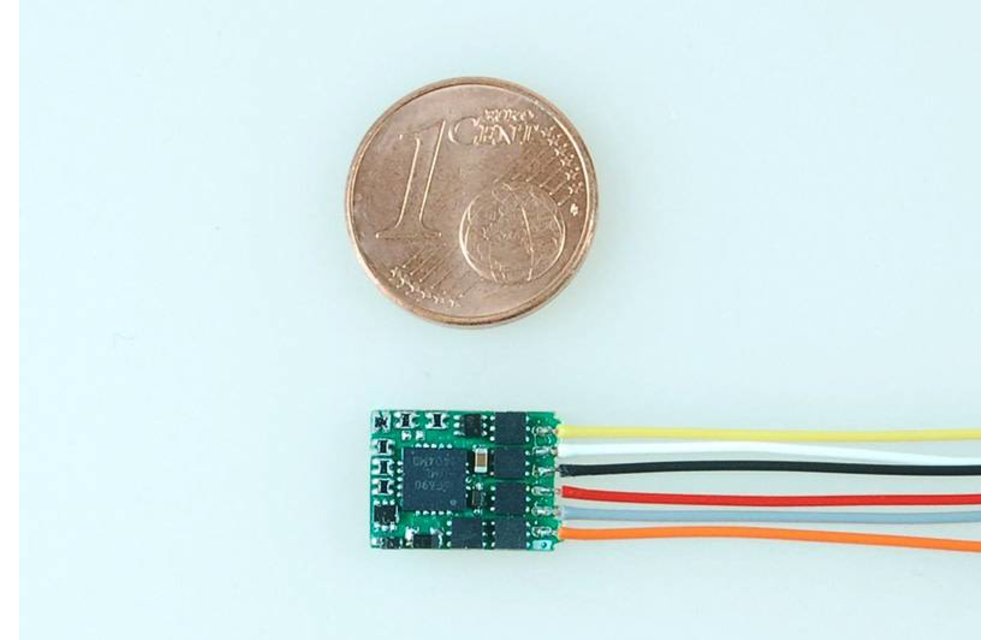

Connection: With wire
Special features / Remarks: The decoder brakes with asymmetric tension and has SUSI and RailCom.
Decoder dimensions: 8.9 x 11.7 x 2.4 mm

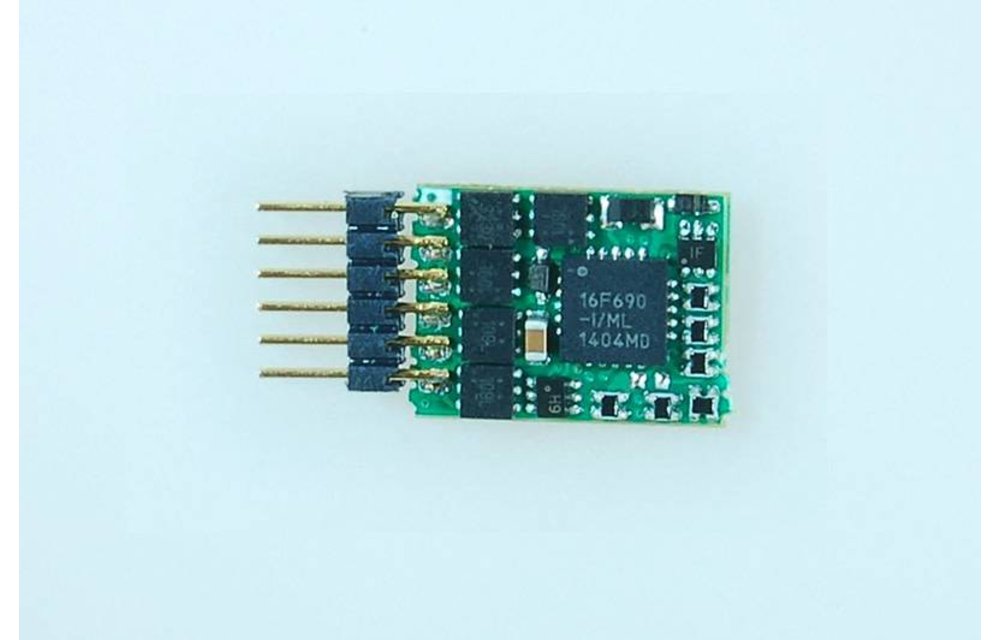

Dimensions decoder pins: 8.9 x 13.7 x 2.4 mm
