A home-made reverse loop solution. Very easy to use, inexpensive to purchase and simple in design. This reverse loop module works 100% on current detection and controls this over 3 sections regardless of the direction of travel. Read more
Product information
A reverse loop solution from our own soil. Very easy to use, inexpensive to purchase and simple in design. This loop loop module works 100% on current detection and controls this over 3 sections regardless of the direction of travel.
Full current detection

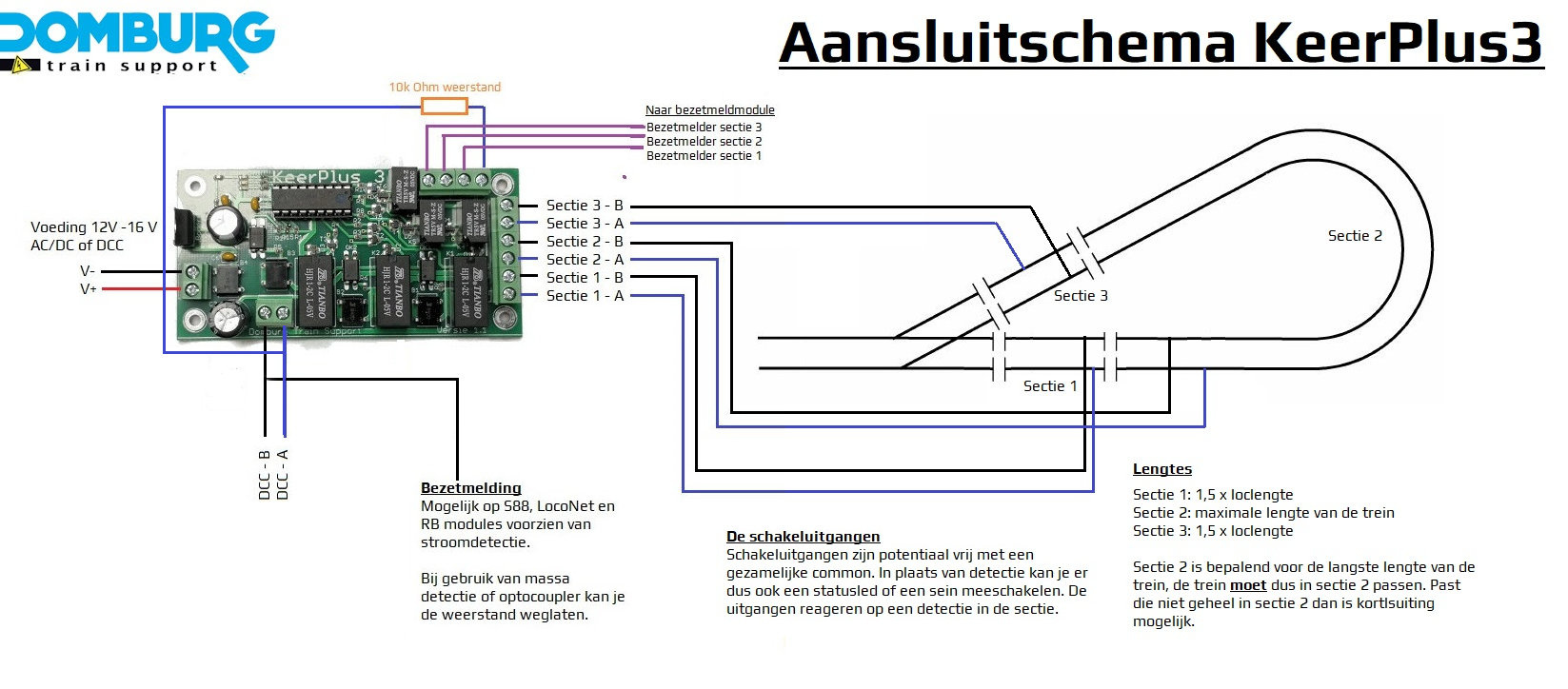

3 sections, the middle of which has the length of the longest train
To be supplied via AC, DC or DCC voltage up to a maximum of 35V
Each section switches an output based on current detection
The switching outputs can be used freely for occupancy reporting or switching of any electronics
The module works stand-alone and does not have to be in contact with a central unit, making the module usable even if you do not use a digital central unit.
