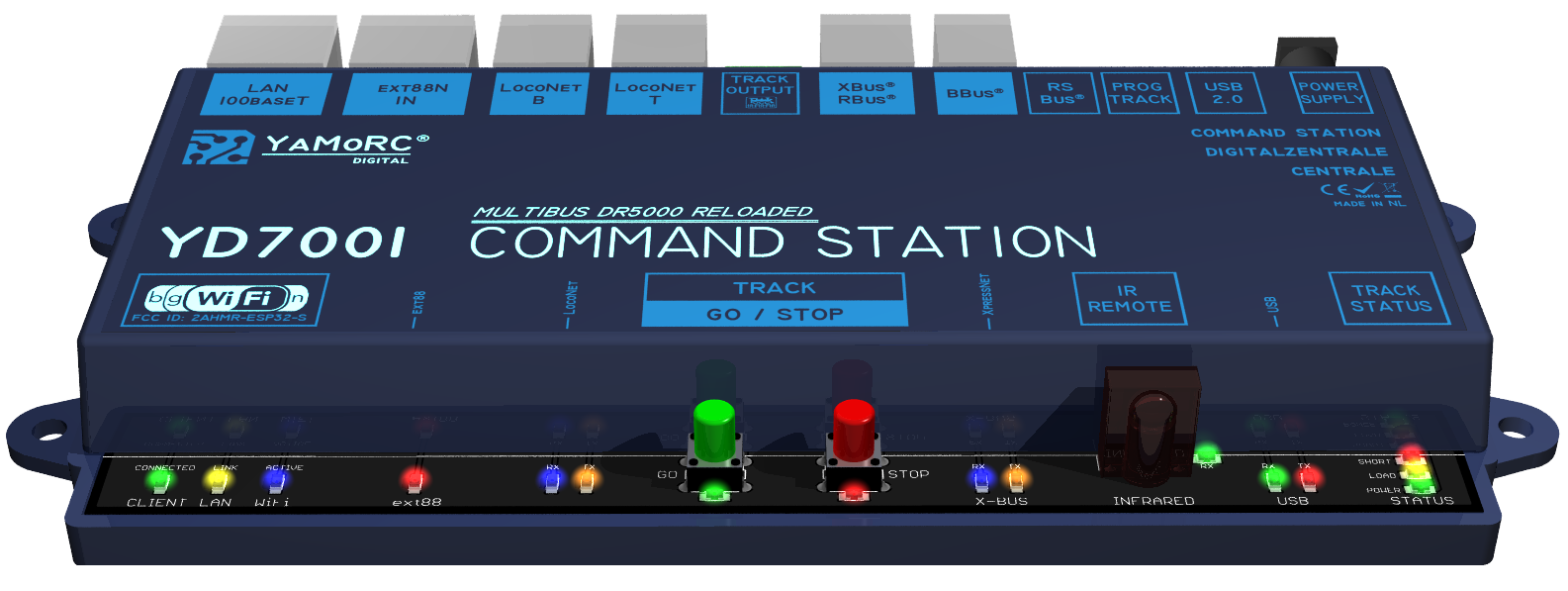

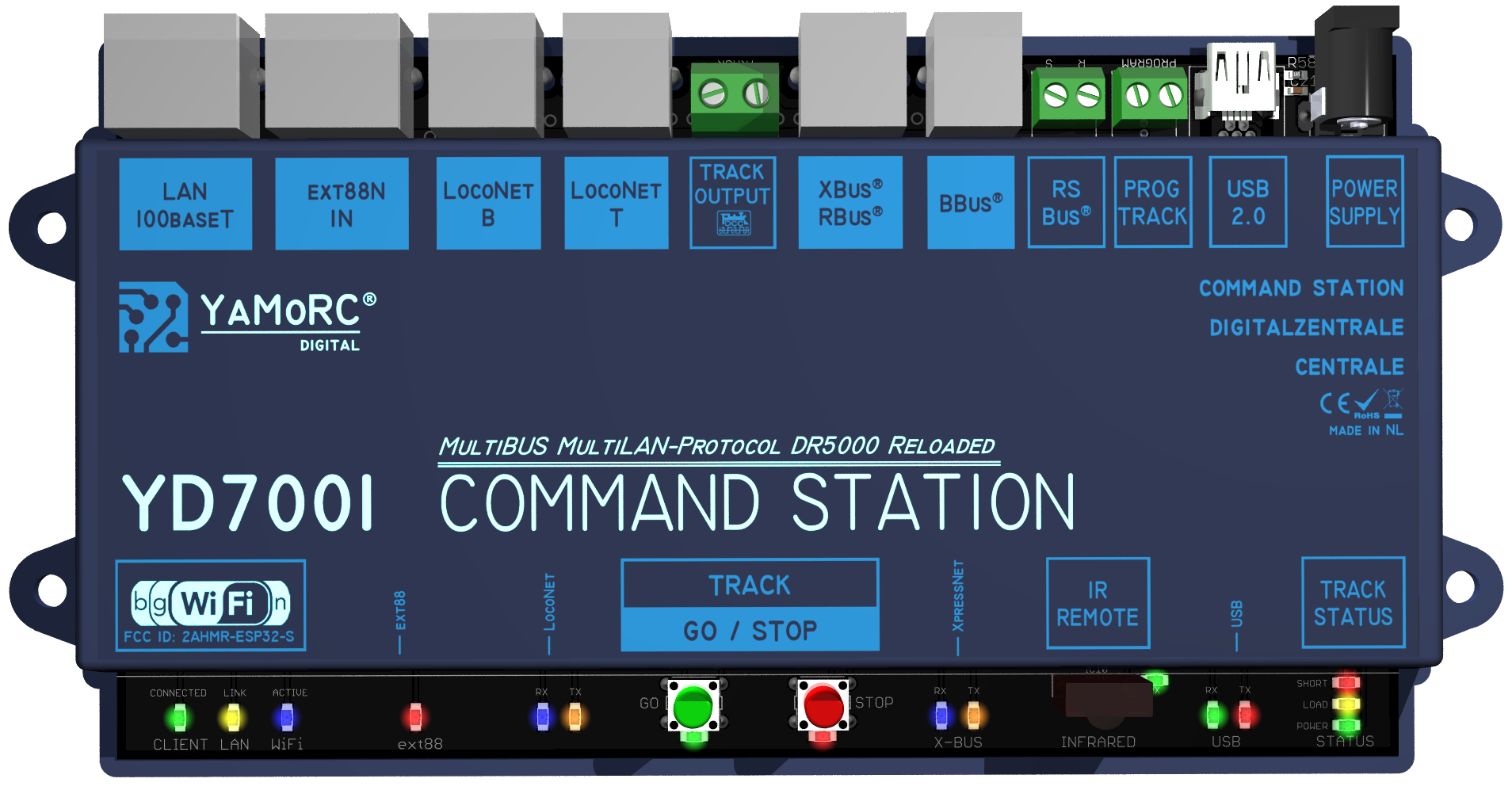

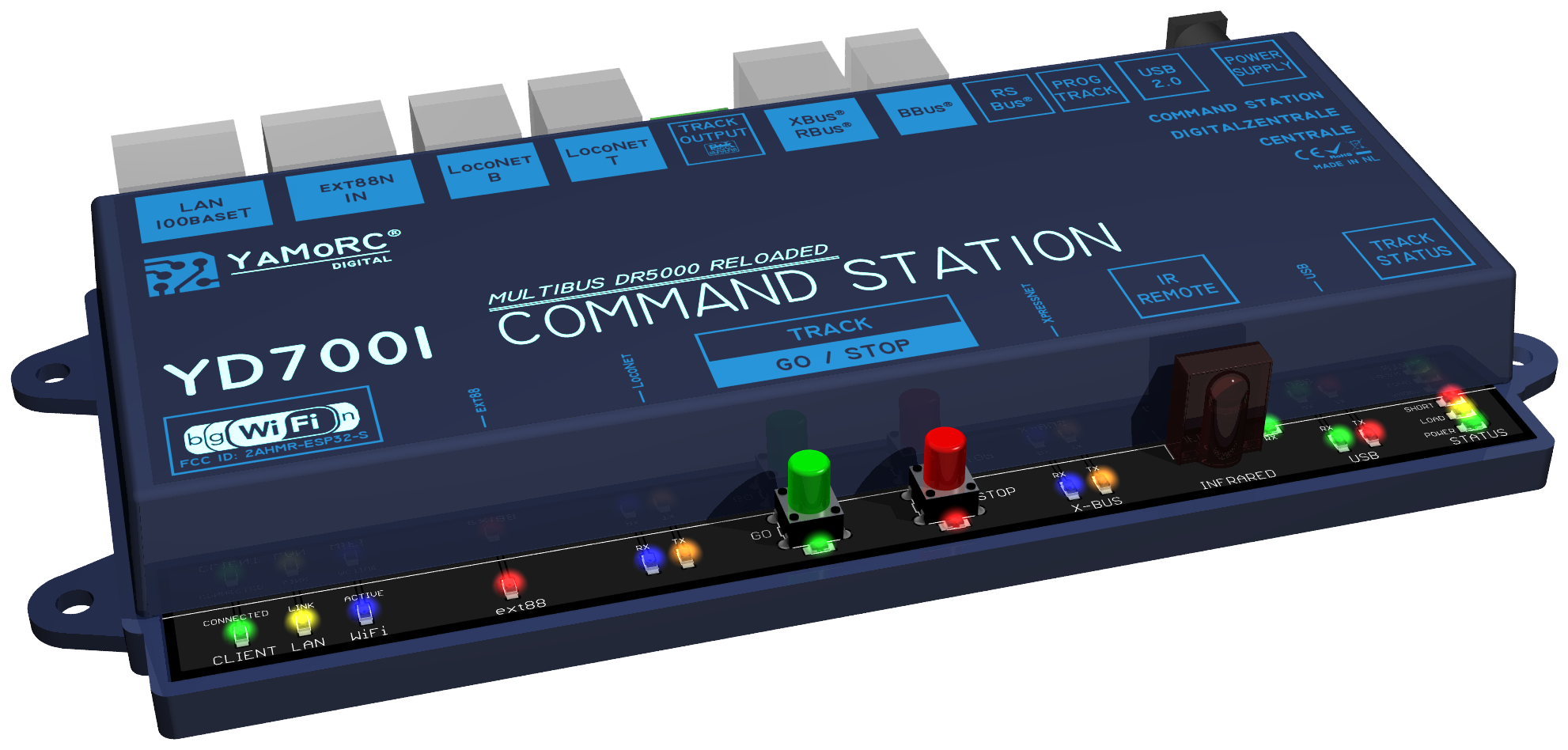

    DTS SPECIAL YAMORC YD7001 COMMAND STATION

    €269,- Out of stock
    Limited availability only!... Show more

    Product description

    In late 2022, YaMoRC launched an upgrade for the DR5000 central controller. An upgrade that turns the DR5000 into a fully-fledged YaMoRC central controller with all the innovations Karst Drenth's brand has to offer.

    At that time, we saw a great opportunity to build a good entry-level central controller that we can offer to our customers. The YD7001!

    YaMoRC's new YD7100 central controller will be a while in coming, in the meantime we are exclusively offering the YD7001 as a full-fledged YaMoRC digital central controller.

    Naturally, we take on the full warranty, support and backing of the DR5000 motherboard which serves as the basis for the YD7001. In turn, we will get the full support from YaMoRC on this special.

    We will also make a Dutch manual available with the YD7001!

    We are currently waiting for the YD9401 upgrade module, the modules are already ready to be finished. At the moment, the modules will start being delivered in week 6. We will then first distribute the updates to all pre-orders after which we will in turn prepare our YD7001 Special.

    If you prefer to wait for the more powerful powerplant YD7100, the current expectation is that it will be delivered by YaMoRC in Q3.

    Briefly, the details of the DTS Special YD7001:

    DCC Protocol
    H-bridge central unit
    Maximum 3A rail voltage
    12/28/128 speed steps
    117 locomotives running simultaneously
    9999 decoder addresses supported
    2048 accessory addresses supported
    DCCExt support up to 255 DCC Aspects
    128 Locomotive functions supported
    Present protocols: LocoNet B & T, XpressNet, R-Bus, B-Bus, RS-Bus S88n
    XpressNet 4.0 supported
    Programming output
    RailCom
    RailCom POM support
    Multiprotocol USB interface
    Multiprotocol LAN interface
    WiFi built-in
    Supported control protocols: Lenz, Z21, LocoNet, LB Server, Dr Command, Binary, Xpressnet, JMRI WiFi Throttle
    Infrared receiver for Uhlenbrock and Piko.
    ES-LINK support on EXT88n input.
    Software programming possible over network or USB
    Built-in Web server with mDNS recognition.



    Show more

    Specifications

    SKU
    DTS-YD7001

    Show more

    Reviews

    5 from 5Based on 1 reviews
    Create your own review
    5 from 5
    Net product en doet het uitstekend
    Posted by: Stephan van Wuijkhuijse on 20 February 2023
