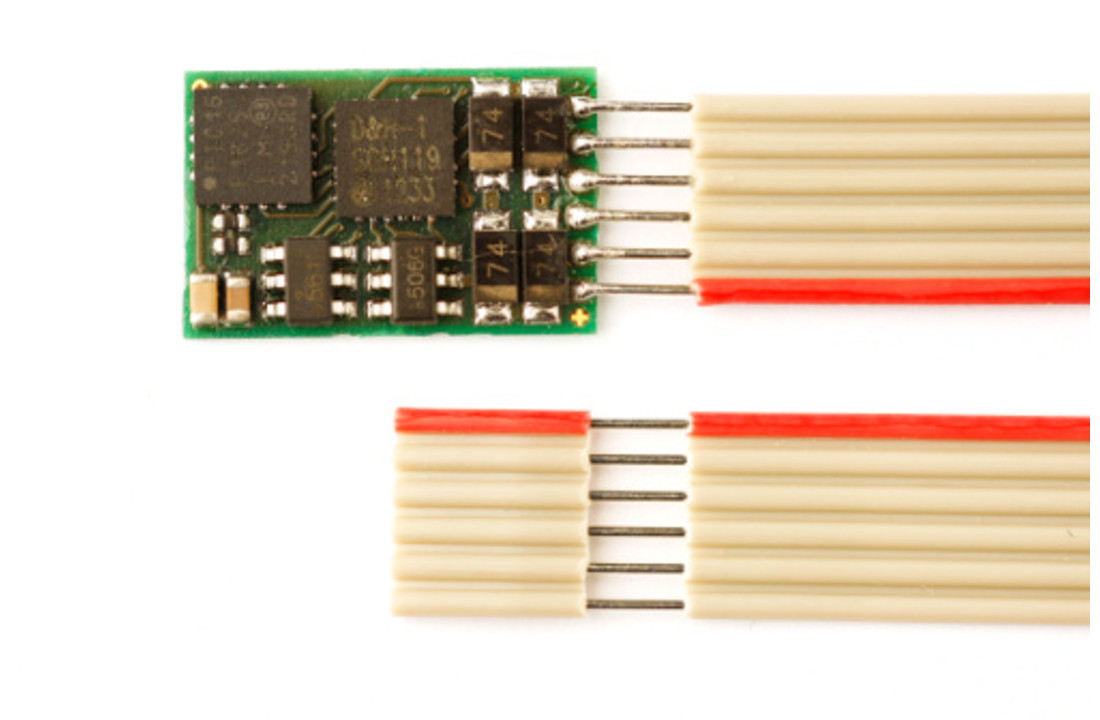

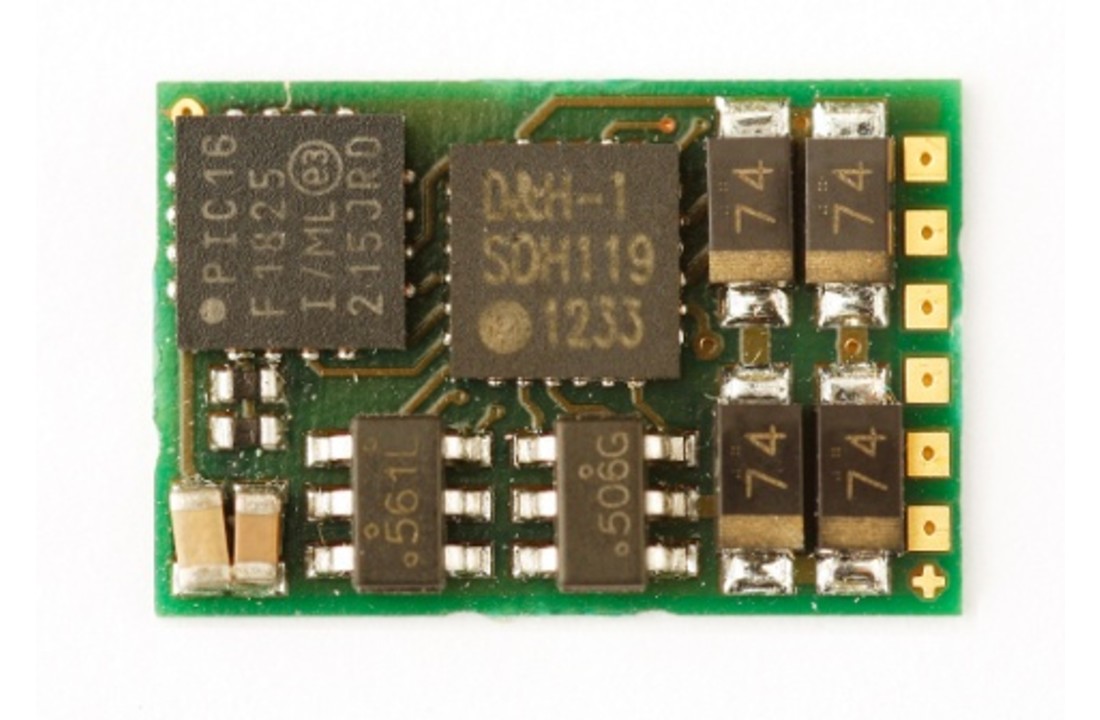

    Doehler & Haass DH10c

    € 29,90 2 In stock Available in store: Check availability

    Available in store

    Close
    3 variations Connection: Wired
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 5 for only €28,41 per piece
    • -10% Order 10 for only €26,91 per piece
    • -15% Order 20 for only €25,42 per piece

    Product description

    Product features and functions

    • For optional operation with conventional direct current driving device, digital systems according to SelecTRIX 1 and 2 or according to the NMRA standard (DCC)
    • The switchover between analogue and digital operation takes place automatically
    • The last programmed system is used in digital mode (it is not switched over automatically!)
    • SelecTRIX 1 31 speed steps, 100 addresses
    • SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
    • DCC Short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
    • The latest generation of load control, resulting in particularly smooth control behavior
    • Different control variants for optimal adaptation to the engine
    • Internal 127 speed steps
    • Adjustable motor frequency (low frequency, 16 kHz, 32 kHz)
    • Block section operation with simple diodes in digital operation
    • Light and function outputs can be dimmed and activated analogously
    • Maneuvering
    • Motor, light and track connections can be exchanged electronically
    • All function outputs freely programmable
    • Temperature protection
    • Reset function for DCC and SX2
    • Update capability of the decoder

    The vehicle decoder DH10C supports braking with asymmetrical digital voltage (four diodes in series and one antiparallel diode, Lenz ABC), slow travel (with suitable brake modules) and bidirectional communication (locomotive address feedback in DCC mode, RailCom®).

    A connected SUSI sound module must be removed for SX1 programming. It is sufficient to interrupt the supply voltage (red wire) for the time of SX1 programming. SX2 or DCC programming is not affected by this.

    Vehicle decoder 1.0 A

    Operating mode SX1, SX2, DCC, MM, DC analog
    Dimensions [mm]14.2 * 9.3 * 1.5
    Total resilience1.0 A
    Max. Motor current1.0 A
    Max. Driving voltage30 V
    LV, LR (dimmable)150 mA each
    AUX1, AUX2 (dimmable)300 mA each
    AUX3, AUX4unreinforced
    with SUSI interface (if AUX3 / AUX4 deactivated)

    Manuals can be downloaded here

    Show more

    Specifications

    SKU
    dh10cb

    Show more

    Reviews

    5 from 5Based on 1 reviews
    Create your own review
    5 van 5
    Perfecte decoder voor N-Spoor, wat kruipt deze decoder mooi!
    By Peter on 29 November 2019
